Precision Engineered, Built to Last: Inside 1D Auto Parts’ Ignition Coil Manufacturing Excellence

How We Deliver OEM Quality at 40% Lower Costs

The Science Behind 1D Ignition Coils

Core Technology

Triple-Layer Windings: High-purity copper windings with 0.2mm precision, ensuring 45,000V stable output (vs. 35,000V in generic brands).

Epoxy Encapsulation: Heat-resistant epoxy resin (rated for -40°C to 220°C) prevents moisture ingress and coil cracking.

Ferrite Core Design: Optimized magnetic flux for faster spark generation and 15% lower energy loss.

Material Sourcing: 100% traceable raw materials from ISO-certified suppliers (100% copper for coil and long range plastic material for connector).

Manufacturing Process: 7 Steps to Perfection

Step 1: Laser-Cut Laminations
Precision-cut silicon steel sheets reduce eddy current losses.

Step 2: Automated Winding
CNC winding machines achieve 0.02mm tolerance, eliminating human error.

Step 3: Vacuum Potting
Epoxy resin injected under vacuum to eliminate air bubbles.

Step 4: Robotic Assembly
AI-guided robots install connectors and housing with 0.1mm alignment accuracy.

Step 5: High-Voltage Testing
Each coil undergoes 50,000 discharge cycles at 45kV (SAE J2032 standard).

Step 6: Thermal Shock Chamber
500 cycles between -40°C and 220°C to simulate 10-year aging.

Step 7: Final Quality Control
100% inspection for resistance (3.0Ω ±0.1Ω) and insulation resistance (>100MΩ).

Quality Assurance: Beyond Industry Standards

Certifications: ISO 9001 and IATF 16949.
Zero-Defect Goal: Six Sigma processes ensure <0.01% defect rate.
Traceability: Each coil has a QR code linking to full test records.
Case Study: An Africa distributor reported 30% fewer warranty claims after switching to 1D coils vs. previous suppliers.

Why Choose 1D Ignition Coils?

Profit Boost: 50% margin on bulk orders (MOQ 100+ units).

Faster Turnaround: 98% 3-days shipment on stocked SKUs.

Cross-Brand Fit: 1,200+ compatible models (Toyota 2N-FE, Mitsubishi 6G72 etc.).

Plug-and-Play: No coding tools needed – installs faster than changing a tire!

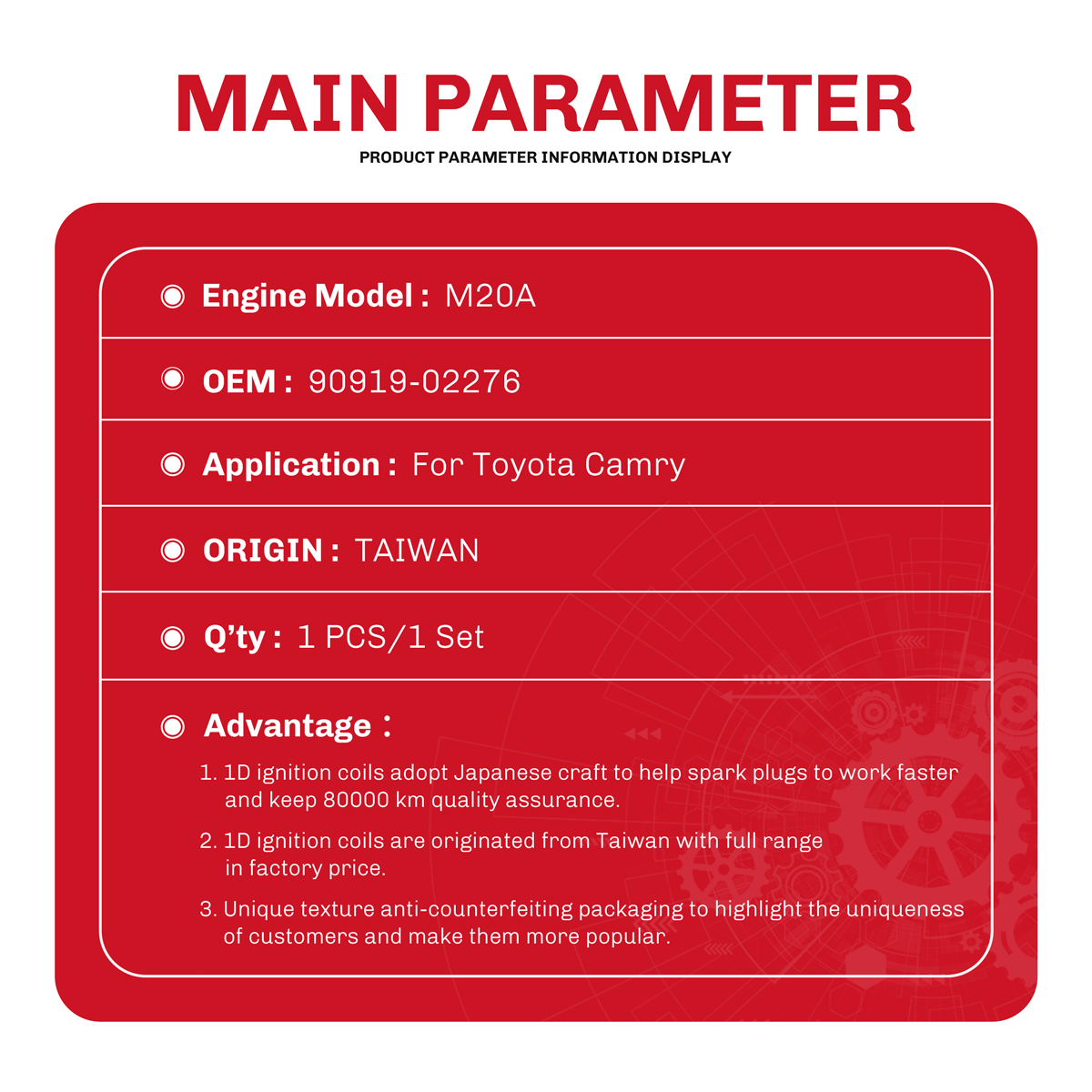

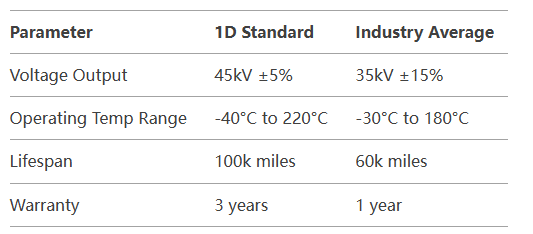

Technical Specifications
